A week from today, I’ll be winging my way to CE Week in New York City. I was initially invited by the organizers of the event to participate on a panel titled, “Producing the Very Best Audio” with my friend David Chesky, which is happening on June 23 at the Metropolitan Pavilion at 11:30 am. But as conversations got off the ground, it was decided that I should also host a demo session in the afternoon in the Gallery space downstairs and continue the demos on Wednesday and Thursday. What good is it to talk about high-end audio and the future of high-resolution audio without being able to experience the real deal? Sounded like a great idea to the organizers. They couldn’t think of anyone more qualified to present demo sessions about real high-resolution audio than yours truly.

The afternoon sessions will begin at 1 pm and continue through the close of the show at 5 pm. I will be alternating session with Joe Kane & Bob Kisor who will be discussing and demonstrating – “The Next Great Thing” in television technology, high dynamic range monitors. My presentation is called, “High-Resolution Audio: Formats, Facts & Falsehoods”. However, it meant securing a high-end, 5.1 surround playback system…and some sponsorship. I’m very pleased that Lenbrook was able to come on board with top of the line NAD electronics (M17 Preamp Processor and M27 Power) and PSD (T3 Towers) speakers. My friends at Dolby are also helping out and DH Labs is once again providing their interconnects and speaker cables.

I’ll be there on Monday pulling everything out the boxes, setting it all up, and tweaking things until everything sounds great. In addition to the Tuesday afternoon sessions, I’ll be giving demos all day Wednesday and Thursday in rotation with Robert Zohn, who will doing his TV Shootout. Anyone in the New York area should make arrangements with Scott Wilkinson of AVS Forum to get credentials for Thursday when the program will be open to non-industry participants.

This will be great opportunity to spread the word about high-resolution audio…the real deal. So I’ve been very busy developing a 4-page, full color information piece called, “High-Resolution Audio: A Consumer Guide”. If I’m lucky the printer will get the files late tomorrow and deliver them back before I leave for New York. I’ve been very fortunate to secure a generous sponsor so that we can print and distribute at least 10,000 copies of the guide. It will go to consumers, retailers, equipment manufacturers, and content providers, anyone with a stake in HRA.

I’ve been working all weekend on a double spread infographic showing the differences between “high-resolution audio” production, “standard resolution” audio, and “master source quality”. I’ve finished the first draft and would love to get some feedback from readers. If a few of you would be so kind as to review it and provide suggestions or report problems (spelling, grammar etc), I would really appreciate it. I’m feeling pretty good about the overall presentation. It’s been a while since I laid out a big project like this.

Take a look:

150614_ce_week_piece

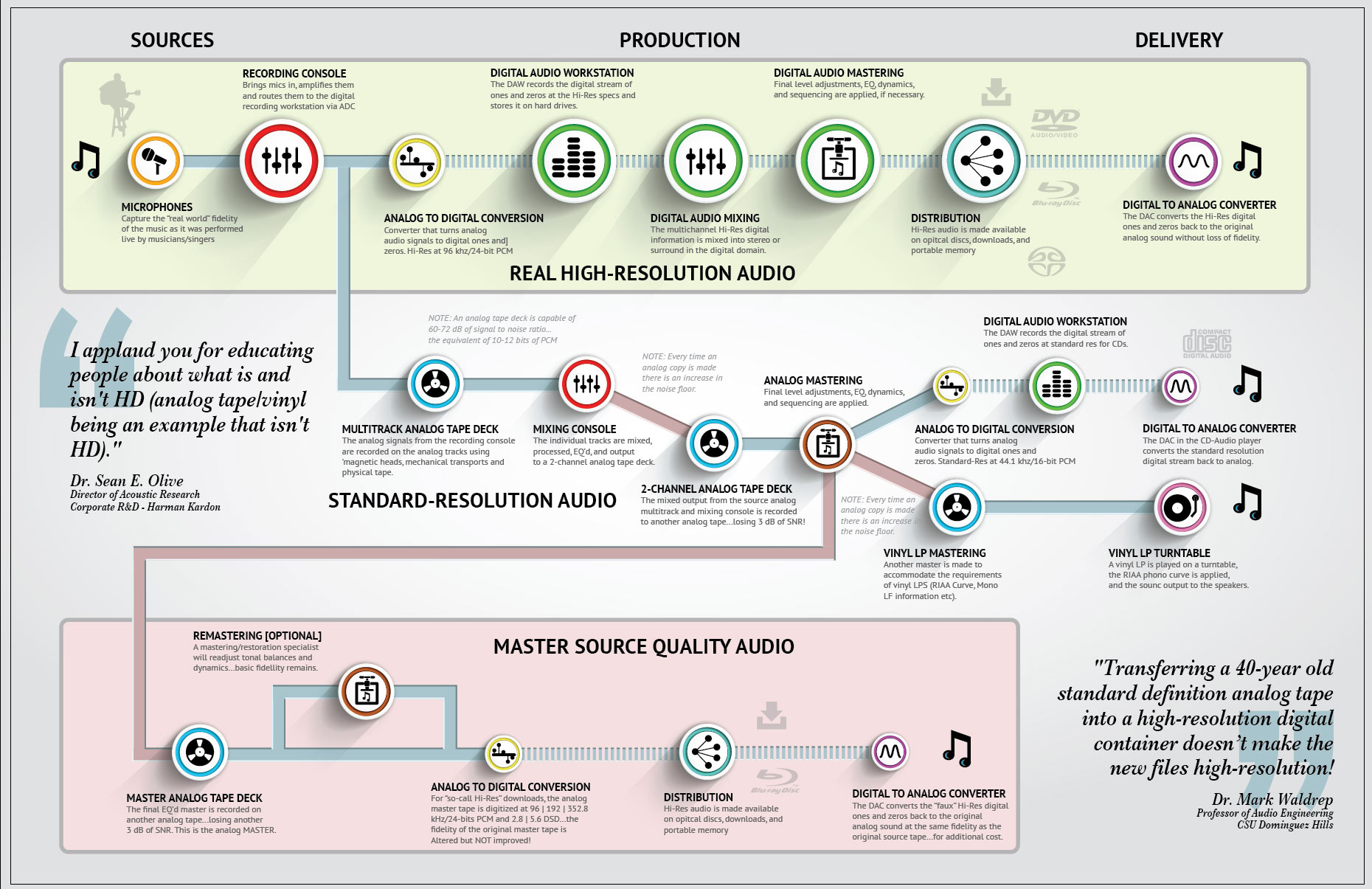

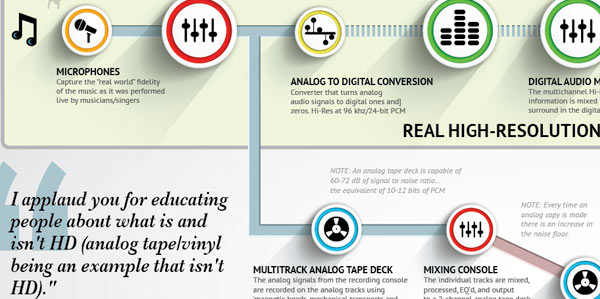

Figure 1 – An infographic detailing the production sequence of high-resolution, standard res, and “master source quality” audio. [Click to enlarge]

I didn’t include DSD but plan to explain it in another section of the document. Thanks for your help. And if you’re near NYC on the 25th, please come by the Altman Building.
