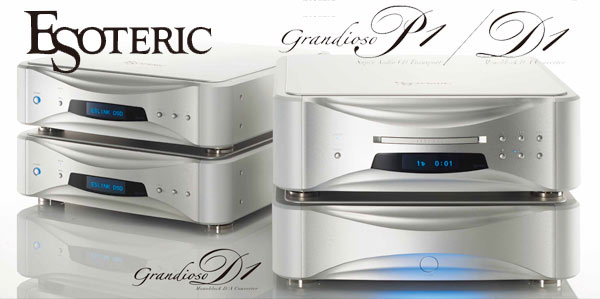

I have to thank my friend John Sunier at Audiophile Audition for alerting me to the latest products developed by Esoteric, a subsidiary of Teac Corporation. In what has become a familiar war over who’s got the biggest numbers, Esoteric has issued the latest salvo. Their new SACD player/monoblock D/A amplifier combo configuration are designated the Grandioso P1 and the Grandioso D1 respectively…and they sport some rather unique technologies. You can buy these for your audio loving partner on this Valentines Day for a mere $88,000.

What’s unique about these new pieces? Well, for starters the Grandioso P1 SACD transport separates the player from its power supply. You get two very handsomely built shiny silver boxes with a terrific server driven optical disc reader. This is NOT a hybrid player. It can only read and playback SACDs [DSD 64] and compact discs (44.1 kHz/24-bits), which I find very surprising…and limiting…in 2014. The unit has the following outputs:

• ES-LINK4 (developed by Esoteric), which outputs DSD and 352.8kHz/48 bit PCM ultra wideband and digital transmission using an HDMI cable.
• AES-EBU Digital (Dual AES-EBU format)
• i.Link (Audio)
• RCA Analog

The magic happens inside the Grandioso D1 amplifier. The inputs via the ES-LINK4 interface can accept 352.8 kHz / 384 kHz, 48 bit Linear PCM (ES-LINK4 format). [NOTE: Here’s the my number is bigger than your number part!] They also talk glowingly about the “outstanding expressive power of 36-bit D/A processing”.

From the catalog:

“The D1 applies a 36-bit D/A processing algorithm that converts PCM signals to analog signals at a high resolution of 36 bits by combining several 32-bit DAC devices. The tone of the high-bit data is used for faithful analog conversion. The resolution of 32-bit encoding is 256 times higher than that of 24-bit encoding, and 36-bit encoding gives an amazing resolution level that is another 16 times higher – a total of 4,096 times higher than the resolution of 24-bit encoding. Producing even finer bit tones minimizes operational error for outstanding expression of even subtle music signals.”

esoteric_diagram

Figure 1 – A couple of graphics taken from the Grandioso D1 monoblock D/A converter [Click to enlarge]

OK so wait a minute, please. Let’s do a little reality check on a couple of these claims.

First, the move from 24-bits to 36-bits doesn’t do anything to bring “fine, smooth sound quality” to your outputs. There’s nobody creating masters at 36-bits and incredibly few recordings that take advantage of 24-bits. Most…as we’ve seen in previous posts…hover around 5-6 bits with the best commercial recordings approaching 10-12! The only advantage you could get from 36-bits is if you made your recording in an anechoic chamber and wanted the noise floor to drop from minus 70-80 dB to near 100 down!

A well made 16-bit CD can actually do a great job on the dynamic range of most mastered music. These specifications and numbers as described in the Esoteric literature is marketing hyperbole and nothing more. And don’t forget that this is an SACD/CD player…not even a hybrid machine that could deliver real high-resolution audio from a USB stick or hard drive…not to mention a Blu-ray at 192 kHz/24-bits.

There are virtually zero recordings being made at these numbers and hoping that a fancy processor is going to “upconvert” your CDs to 352.8 kHz/36-bits and result in high-resolution audio output is wishful…and expensive, very expensive…thinking.

Keep your money and buy an Oppo BDP-103 or 105, you’ll get a true hybrid machine (it will play any type of optical disc you put in the drawer), music server with USB and eSata hard drive compatibility and DACs (on the 105) that will more than meet the needs of audiophiles. And you get to save $87,000!

We need to let the manufacturers know that simply parading around bigger numbers doesn’t do anything to elevate the fidelity of recordings…that will only happen if we demand better records from the labels.

Forward this post to a friend and help us spread the word about HD-Audio Forward this post to a friend and help us spread the word about HD-Audio

Share

About Author

Dr. AIX

Mark Waldrep, aka Dr. AIX, has been producing and engineering music for over 40 years. He learned electronics as a teenager from his HAM radio father while learning to play the guitar. Mark received the first doctorate in music composition from UCLA in 1986 for a "binaural" electronic music composition. Other advanced degrees include an MS in computer science, an MFA/MA in music, BM in music and a BA in art. As an engineer and producer, Mark has worked on projects for the Rolling Stones, 311, Tool, KISS, Blink 182, Blues Traveler, Britney Spears, the San Francisco Symphony, The Dover Quartet, Willie Nelson, Paul Williams, The Allman Brothers, Bad Company and many more. Dr. Waldrep has been an innovator when it comes to multimedia and music. He created the first enhanced CDs in the 90s, the first DVD-Videos released in the U.S., the first web-connected DVD, the first DVD-Audio title, the first music Blu-ray disc and the first 3D Music Album. Additionally, he launched the first High Definition Music Download site in 2007 called iTrax.com. A frequency speaker at audio events, author of numerous articles, Dr. Waldrep is currently writing a book on the production and reproduction of high-end music called, "High-End Audio: A Practical Guide to Production and Playback". The book should be completed in the fall of 2013.

(8) Readers Comments

  1. It’s even worse than you think, Mark. This is a 2-CHANNEL-ONLY player.

    Therefore, it will throw away 66% of the data on your SACDs, Mark, and fiddle around to the n-th degree with the remainder.

    Why would anybody want to do that? It seems neither efficient nor effective.

    I’ll stick to my new Oppo 105, thank you. At least it reads the disc properly!

    • It never ceases to amaze me…but then again I’m not a member of the 1%.

  2. Well, at least they admit their comparisons of 32-bit versus 36-bit resolution are just “conceptual” and don’t in any way resemble the sounds a listener ultimately hears. The same could be said for comparing a 16-bit recording to a 24-bit recording — the audible difference (or even visual via spectrograph) are nil.

    • I’m not with you on the 16-bits to 24-bits thing. The reason to get to 24-bit (and no further) is to have the potential to capture ALL of the real world dynamic range that our ears can distinguish. In the commercial music world, 16-bits is certainly more than enough. But for recording like my own, 24-bits does make a difference…and the SNR does exceed 96 dB…but only rarely.

  3. Hi Mark

    OK will post on the RealHD-Audio site. Thanks for your reply.
    As you’ll be using just the front end of the Oppo player and not it’s audio dacs or output stage then as a transport it’s a very good player. As a standalone transport/dac combo it does not cut the mustard IMO but it looks like you already realise this by using it with other DAC’s.

    Yes Esoteric are usually ahead of the game technology wise and will be first to market in many occasions with leading edge ability for those that can afford it. I would suspect that the creators already have some Japanese software vendor making disks for them for use as demos and viola, it will be yet another format wars where they try and sells us software we already have 3 copies of in various forms but at a premium price, a’la SACD etc.

    Best of luck with the demo, you should knock them dead in comparison to garden variety disks.

    Best regards Vitavoxdude

    • I do believe that the Bryston approach to converting multichannel digital to analog is as good as it gets. But never-the-less the Oppo 105 with the ESS Sabre DACS comes very close. And where else can you get a very good multichannel DAC for that kind of money?

  4. Dig a little deeper on the Esoteric page and the D1 converter’s S/N ratio is listed as “merely” 113dB (weighted? unweighted?). You can save $86,000 by buying Benchmark’s DAC2 HGC with a S/N of 126dB (A-weighted). Even there, you’re at 21 bits. Not 24. Not 32 or 36. I understand the value of 32 bit (and higher) for DSP, but this is just more smoke and mirrors, as Mark has so clearly and fairly spelled out. Yeah, and Oppo’s BDP-103 for $500 MSRP is 113dB (A-weighted).

    Bryston’s BDA-1 (stereo) boasts the highest S/N I’ve ever seen on paper, 140dB. How’d they do that?

    • Both Benchmark and Bryston are at the top of my list!
