I’ve posted a couple of times about my experiences at the recent NAMM Show and wanted to finish up with a meaningful conversation I had with a couple of Sony representatives about headphones. I’ve used Sony headphones for years in my studio although I’m not usually much for listening to music using phones of any type.

But the market for headphones is huge and growing, thanks in part to the cool factor and styles provided by Beats with the Dr. Dre line. There is obviously a large segment of mostly younger listeners that are enjoying personal music through a good set of headphones. I’m interested in great headphones because I want to deliver high-resolution audio on a personal basis not because I want to make a fashion statement or have the bass frequencies hyped.

At the Sony booth, I described that I was looking for a set of headphones that would allow me to evaluate the perceptibility of ultrasonic frequencies in music recordings. In order to do that I have to have a set of speakers (personal headphones or the new Harmon M2 studio monitors or Salon 2s) that can accurately reproduce frequencies above 20 kHz. The product manager brought up the Sony Professional Audio website and showed me the specifications page on their 7500 line of headphones. I’ve posted the specifications below:

sony_headphones_specs

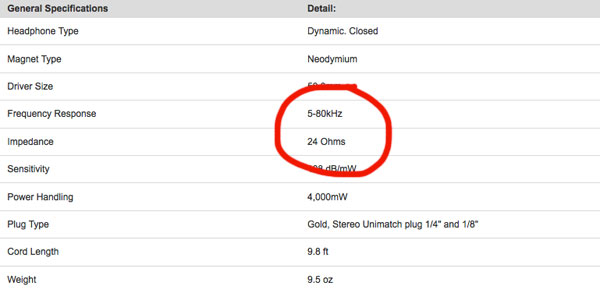

Figure 1 – The specifications tab on the Sony MDR 7520 model headphones showing the response to 80 kHz!

“These headphones utilize ultra wideband 50mm HD driver units incorporating liquid crystal polymer film diaphragms,” according to the downloadable pdf about the 7520s. And they cost only $500! That’s a pretty reasonable price for a high quality set of phones. They said that they would send me a pair for evaluation purposes…so we’ll see.

I might also mention that I did go through the Blue Company “sneak preview” of their mega expensive ($5000!) and as yet undelivered headphones at their booth. Blue is know for their line of high quality microphones and are entering the headphone market with a lot of smoke and mirrors, it you ask me. The 2 minutes 4- station promotional tunnel at their booth said nothing, showed no product samples, listed no specifications…they just flashed lights and clever marketing slogans. Pass.

My general complaints about headphones are that they are uncomfortable and they put the sound in the middle of your head. There is no sense of space when you experience most portable listening systems…headphones or in ear monitors. Here’s a blurb that I noticed today on the Men’s Health website:

Do your ears a favor. On a recent episode of Men’s Health Live, we hit the Consumer Electronics Show in Las Vegas and chatted with Daniel Sennheiser of Sennheiser about his company’s new line of Momentum over-ear headphones. Sennheiser explains the benefits of using headphones over speakers:

“A speaker is always dependent on the acoustics of the room that you’re in. Unless you have a concert hall at home, you don’t have optimal acoustics. Headphones create that binaural audio environment—you can listen to headphones and the audio quality is as if you’re in a concert hall or a jazz club.”

Now I have a great deal of respect for Daniel Sennheiser and have used their equipment for a very long time. But he’s strayed from the truth pretty severely on this one. I got my Ph.D. by studying binaural sound recording and reproduction and I can tell that music delivered through headphones has nothing to do with binaural hearing unless you record the source material using a binaural head (which Sennheiser does manufacture). The spaciousness that a binaural recording can provide is very special but how much commercial music is recorded that way? None!!

If I can establish that the new headphones that I’m testing can actually output frequencies higher than 20 kHz…I’ll be posting some test tones to continue my quest to establish the importance of ultrasonics in the recording and reproduction of high-resolution music.

This is going to get interesting. If any of you have a great set of headphones…you’ll be able to get involved in this informal study.

Forward this post to a friend and help us spread the word about HD-Audio Forward this post to a friend and help us spread the word about HD-Audio

Share

About Author

Dr. AIX

Mark Waldrep, aka Dr. AIX, has been producing and engineering music for over 40 years. He learned electronics as a teenager from his HAM radio father while learning to play the guitar. Mark received the first doctorate in music composition from UCLA in 1986 for a "binaural" electronic music composition. Other advanced degrees include an MS in computer science, an MFA/MA in music, BM in music and a BA in art. As an engineer and producer, Mark has worked on projects for the Rolling Stones, 311, Tool, KISS, Blink 182, Blues Traveler, Britney Spears, the San Francisco Symphony, The Dover Quartet, Willie Nelson, Paul Williams, The Allman Brothers, Bad Company and many more. Dr. Waldrep has been an innovator when it comes to multimedia and music. He created the first enhanced CDs in the 90s, the first DVD-Videos released in the U.S., the first web-connected DVD, the first DVD-Audio title, the first music Blu-ray disc and the first 3D Music Album. Additionally, he launched the first High Definition Music Download site in 2007 called iTrax.com. A frequency speaker at audio events, author of numerous articles, Dr. Waldrep is currently writing a book on the production and reproduction of high-end music called, "High-End Audio: A Practical Guide to Production and Playback". The book should be completed in the fall of 2013.

(4) Readers Comments

  1. The spec sheet for those Sony 7520s reads similarly to the sheet for lower priced models by Sony. I figured they were trying to make their product line up look high resolution-ready by claiming great frequency extension without stating the reduction in amplitude. I hope your testing proves me wrong. Right now I am skeptical. Finding headphones with ultrasonic response might give me a less expensive way to remove ultrasonic bottlenecks in my playback system (but I will still want ultrasonic power amplification and speakers some day).

    The response curves published at Inner Fidelity show very ragged frequency response above 10 kHz. I wonder whether this is the true nature of the units under test or a problem with the measurement technique. Any findings you provide about response beyond 10 kHz will be very welcome.

    • I’ll check them out and let you know.

  2. I share your skepticism: any company quoting a frequency response without any further information is highly suspicious. Ambiguous specs coming from Sony (who are in the midst of their DSD misinformation campaign) are even more suspicious – they know better.

    Put another way, I can with complete confidence state that the frequency response of every transducer ever made is between 0 and 1 GHz (or pick any higher value), separate from filtering before the transducer. I will remain silent on the level of output, amount or type distortion or expected operating lifetime at any given frequency for that confidence level:)

    As I think I’ve suggested before, it would be great if you could reach out to Dr. Sean Olive on headphone stuff for a future post – I’m pretty impressed with his work. I’d also suggest reaching out to the guy who runs head-fi.org to have a discussion on high fidelity music and what it means to headphone and portable listeners. I don’t know him personally, and while he keeps a pretty-loosely moderated site that tolerates many scientifically dubious posts, I think he comes across as extremely savvy and “gets” high fidelity in general. I know you are leading a campaign for high resolution/high fidelity music, and I think you’d find significant support for no-BS portable high fidelity over there, and head-fi has the potential to add much more pressure on music studios to produce high fidelity music . I am astounded by the market presence of head-fi, and I think it’s worth a shot to enlist them in the effort to persuade music labels to abandon Loudness War and faux high resolution music practices.

    • I will talk to Sean about headphones and the needs for my study. I was on a panel at RMAF with one the principals at Head-Fi.org…I need to reach out to them again.
